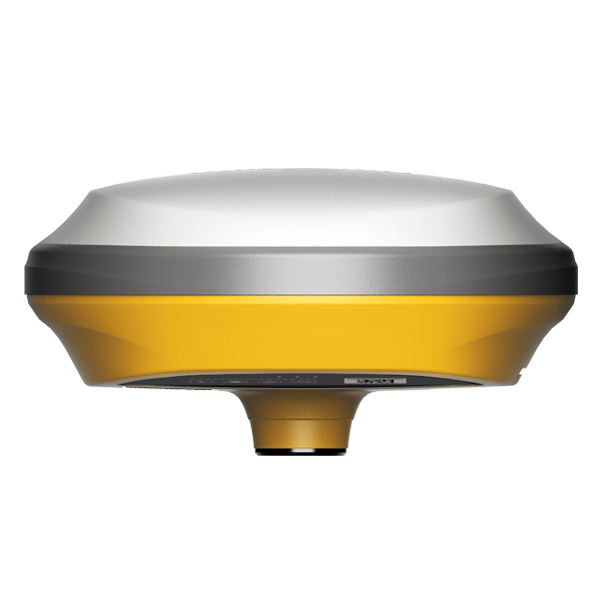

E100 is a smart receiver with compact design, which can track multi-system satellites, built-in large-capacity lithium battery and support PD fast charging, integrated combination antenna, GNSS, WiFi, Bluetooth, 4G as a whole, wireless signal is better. The GNSS satellite Signal Noise Ratio is increased by 2DB on average, and the RTK performance in a complex environment is superior, the lightweight and rugged magnesium alloy body has excellent high cost performance.
RTK Accuracy
Horizontal 8mm+1ppm RMS
Vertical 15mm+1ppm RMS
- Multi-constellation satellite tracking - GPS, GLONASS, BDS, GALILEO, SBAS, QZSS (Option of 488 or 572 Channels)
- Built-in 4G network module - Faster network logins, more stable network communication.
- Made of magnesium alloy material - Lighter and stronger. IP67
- Support to receive the L-BAND satellite signal - Single receiver can achieve centimetre level positioning.
- Web UI - Access the Web page, complete the receiver configuration, download data, firmware upgrade, view status, etc. through the mobile phone, tablet and other handheld devices.
Click the pdf icon below.
Frequently asked questions:
- For an inexpensive GNSS receiver, what is it lacking to be this price?
Take a look at the specification sheet to see how functional and highly specified this instrument is.
488 Channels, Multi-Constellation - no additional charges to be had for separate GNSS systems, GPS\GLONASS\BEIDOU\GALILEO included as standard.
- Does it take longer to reach a fixed solution?
This receiver combined with Surpad 4 running on a premium hardware controller such as the UT12 or P911 Pro is extremely fast and reliable, producing accurate and dependable results in no time.
- What is the modem like in the receiver itself, as the 2/3 G Networks are being phased out?
Unlike some receivers all the E-Survey units have 4G built in as standard, and there is still an option to run the Sim either in the antenna unit itself or within the controller hardware.
